Name: TFH Series Industrial Pneumatic Grippers with MultiMount and High Accuracy Guide
Brand: Hyclamavin
Price: 500 USD

Brand Name : Hyclamavin

Model Number : TFH

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : USD500-1000.00/PC

Payment Terms : L/C, T/T

Supply Ability : 1000 pcs per month

Delivery Time : 4-6 weeks

Packaging Details : Carton Case

Model : TFH

Jaw Opening : Adjustable

Protection Class IP : 41

Finger Material : Steel

Stroke : Long

Jaw Type : 2-Jaw

Material : Aluminum Alloy

Number Of Jaws : 2

Grip Force : High

Contact Now

2-Jaw Pneumatic Parallel Long Stroke Gripper TFH

Product Information

TFH Series Industrial Pneumatic Grippers with Multi-Mount and High Accuracy Guide

Excellent performance

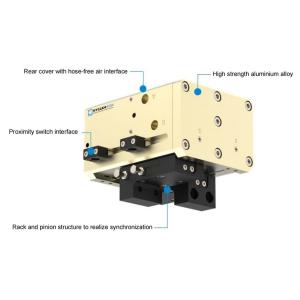

The TFH series grippers are equipped with high-precision guidance systems, a compact build, dependable operation, and economical value.
Various air connection types and installation methods are available for all TFH series grippers.
A rack and pinion drive structure enables synchronized action across all TFH series grippers.

TFH Series Industrial Pneumatic Grippers with Multi-Mount and High Accuracy Guide

Model and Technical Parameters

Model	Stroke per jaw[mm]	Closing/ opening force[N]	Min. Spring force[N]	Weight[kg]	Recommended workpiece weight[kg]	Closing/ opening time[s]	Repeat accuracy [mm]	Protection class IP
TFH-30A-1	30	750/680		2.6	3.75	0.30/0.30	0.05	41
TFH-30A-1-AS	30	840/-	90	2.7	3.75	0.35/0.35	0.05	41
TFH-40A-1	40	1280/1120		4.7	6.4	0.30/0.30	0.05	41
TFH-40A-1-AS	40	1560/-	280	4.8	6.4	0.30/0.40	0.05	41
TFH-40A-1-IS	40	-/1400	280	4.8	6.4	0.40/0.30	0.05	41
TFH-50A-1	50	2620/2350		9.5	13.1	0.70/0.70	0.05	41
TFH-50A-1-AS	50	2970/-	350	9.6	13.1	0.60/0.80	0.05	41
TFH-50A-1-IS	50	-/2700	350	9.6	13.1	0.80/0.60	0.05	41

TFH Series Industrial Pneumatic Grippers with Multi-Mount and High Accuracy Guide Images
